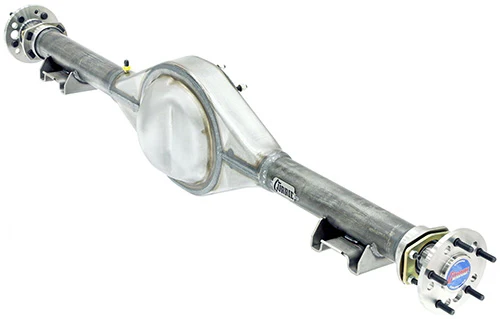

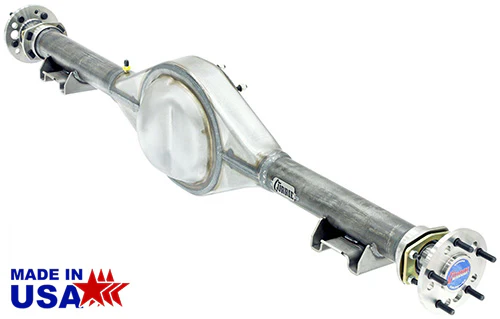

1962-67 Chevy Nova Ford 9" Rear End Housing and Axles, Mono Leaf
Features the 9-Plus heavy duty housing and 31 spline performance axle package built to the stock overall width and pinion offset specs. of the vehicle. Heavy duty reproductions of the stock GM mono leaf spring pads are installed in the stock location for an easy bolt in installation. Housing includes all 3rd. member studs installed and the Torino style late model large bearing housing ends. Axles include the stock 5 on 4 3/4” wheel bolt pattern drilled in them, wheel studs installed, ¼” thick heavy duty bearing retainer plates, and tapered Timken style wheel bearings pressed on.
This unit will allow for the use of any ABCS brake kit including the 11” drum brakes, 11” Ford Explorer disc brakes, or Wilwood disc brakes.
Original: $1,550.00
-65%$1,550.00
$542.50
Description
Features the 9-Plus heavy duty housing and 31 spline performance axle package built to the stock overall width and pinion offset specs. of the vehicle. Heavy duty reproductions of the stock GM mono leaf spring pads are installed in the stock location for an easy bolt in installation. Housing includes all 3rd. member studs installed and the Torino style late model large bearing housing ends. Axles include the stock 5 on 4 3/4” wheel bolt pattern drilled in them, wheel studs installed, ¼” thick heavy duty bearing retainer plates, and tapered Timken style wheel bearings pressed on.
This unit will allow for the use of any ABCS brake kit including the 11” drum brakes, 11” Ford Explorer disc brakes, or Wilwood disc brakes.
